MFMCA0050VGD｜Motor Cable
Download
Currently, there are no downloadable files related to this product.
*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Part Number | MFMCA0050VGD |
|---|---|
| Product | Motor Cable (with Brake) |
| Details | with Brake, 5 m |
| Product Name | Motor Cable |
Contact Us
*Specifications and design of the products are subject to change without notice for the product improvement.
Spec Detail
Specifications and design of the products are subject to change without notice for the product improvement.
| Item | Specifications |
|---|---|
| Part Number | MFMCA0050VGD |
| Product details | with Brake, 5 m |
| Specification detail | Highly bendable type, Opposite direction of motor shaft |
| About Enclosure | It doesn't correspond to IP65 and IP67. |
| Applicable Family / Series | AC Servo Motors MINAS A6 Family |

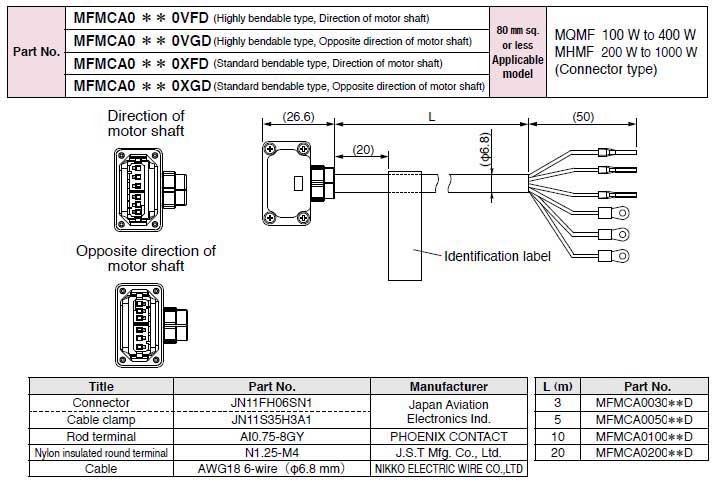

Dimensions
Specifications and design of the products are subject to change without notice for the product improvement.
[Unit: mm]
[Unit: mm]
*L =length.
