EF-S1HS｜Electrostatic Sensor EF-S1

Download

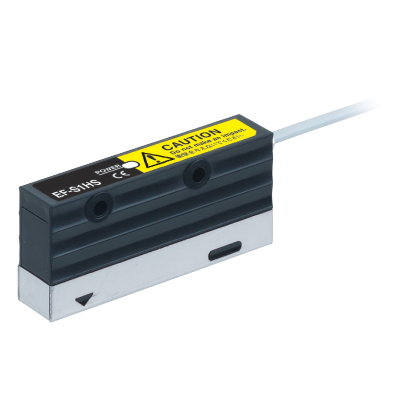

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

EF-S1HS

Part Number

EF-S1HS

Product

Electrostatic Sensor

Details

Sensor head

Product Name

 Electrostatic Sensor EF-S1

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberEF-S1HS
Product NumberEF-S1HS
Products NameElectrostatic Sensor
Product detailsSensor head
The price of the productPlease contact our office
Applicable controllerEF-S1C
Measurement range(Range mode)8.0 to 20.5 mm 0.315 to 0.807 in (plus or minus1 kV range mode)
21.0 to 100 mm 0.827 to 3.937 in (plus or minus2 kV range mode)
(Note) The display range (measurement range) is switched automatically when the measurement distance setting is changed at the controller.
(Note) F.S. is 2,000 V (–1,000 V to 1,000 V) for the plus or minus1 kV range mode and 4,000 V (–2,000 V to 2,000 V) for the plus or minus2 kV range mode.
(Note) The values given are for when the measured potential is plus or minus200 V or less in the plus or minus1 kV range mode and plus or minus400 V or less in the plus or minus2 kV range mode.
If the measured potentials are outside these values, the values will be equal to the displayed values plus or minus5 %.
Power indicatorGreen LED
Ambient temperature0 to +40 ℃ +0 to +104 ℉ (No dew condensation), Storage: –20 to +60 ℃ –4 to +140 ℉
Ambient humidity35 to 65 % RH, Storage: 35 to 85 % RH
Vibration resistance10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock resistance98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
MaterialEnclosure: Heat resistant ABS, Measuring part cover: Stainless steel (SUS304)
Cable0.09 mm2, 3-core shielded cable, 5 m 16.404 ft long (with controller connector)
(Note) Cable cannot be extended.
WeightNet weight: 90 g approx., Gross weight: 130 g approx.
