Basic Information
Accommodate a range of applications thanks to outstanding ion balance, robust dust resistance, and an extensive nozzle selection
UL, CSA : Certified by TÜV SÜD America Inc. (ER-VS02 only)

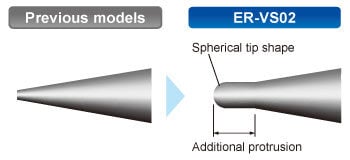

![Optimized discharge needle tip shape for even more stable ion-producing power [ER-VS02]](https://ap.industry.panasonic.com/hs-fs/hubfs/pid-corp/products/fasys/staticsys/staticsys/er-v/images/pic11.jpg?width=350&height=160&name=pic11.jpg)
The discharge needle tip’s spherical shape enables more stable ion production while making it less likely that the shape of the tip will change over time as a result of electrical discharge.
Improved maintenance cycle [ER-VS02]
(* When used in an operating environment that complies with Panasonic Industry requirements)
Selection of nozzles for different applications
In addition to eight standard nozzle types, including shower and tube nozzles, We offers a range of differently shaped nozzles (including made-to-order models).

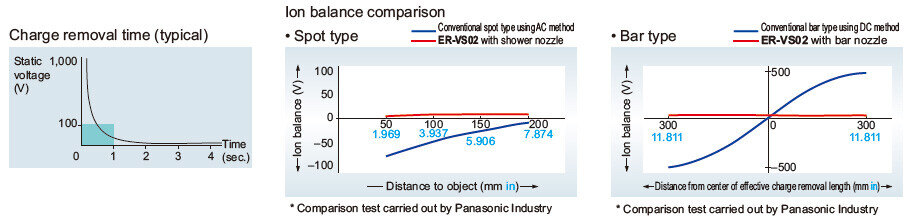

Produces excellent ion balance
The adoption of high-frequency AC method allows extremely stable ion balance to be achieved. Because the ion balance is not affected by the pressure of air supplied or by the setup distance, no troublesome adjustments are required after setup.

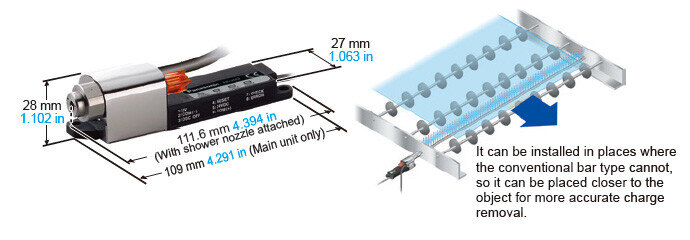

Ultra-compact design accurately removes charges of objects even from narrow spaces
The main unit is merely 109 x 27 x 28 mm 4.291 x 1.063 x1.102 in, so it can easily be combined with other devices and also be installed as an add-on. Furthermore, the highvoltage power supply is built-in, so no extra space is required except for the ionizer itself.
The discharge needle can be removed from the rear of the main unit, so there is no need to remove the nozzle when replacing the needle. Maintenance is easy even when the ion air outlet is located close to the object.
A signal from an external device can be used to turn discharge ON and OFF.

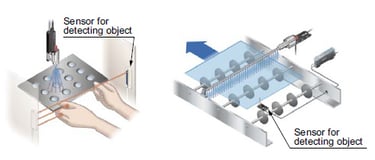

Sensors can be used to detect the objects so that the ion air is generated only when required.
The discharge ON / OFF status can be checked using an LED display. This lets you avoid problems such as when the power is on but no discharge is occurring.
------------------------------ Tab2 showing ------------------------------
Pinpoint charge removal of electronic components
Removal of dust from connectors and switches
Charge removal and dust removal of relay and switch contacts
------------------------------ Tab3 showing ------------------------------
Order guide
Ionizer main unit
Nozzle and cable with connector are not supplied with the ionizer main unit. Please order them separately.
| Type | Appearance | Charge removal time (±1,000V→±100V) | Ion balance | Model No. |
|---|---|---|---|---|
| Spot type |

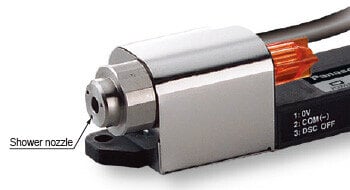

* The photograph shows the unit fitted with a shower nozzle. | 1 sec. or less (Note) | ±10 V or less (Note) | ER-VS02 |
Note : A typical sample applied with a supply voltage of 24 V, a distance of 100 mm 3.937 in from the front surface of the air flow outlet and a pressure of 0.25 MPa while the shower nozzle is in use.
(Measured on a sample left in the atmosphere at a relative humidity of 65 % RH or less for 24 hours or more.)
Nozzles / Tubes
Nozzle is not supplied with the ionizer main unit. Please order it separately.
| Type | Appearance | Model No. | Description | ||
|---|---|---|---|---|---|
| Shower nozzle |
| ER-VAS | Air dispersal type | ||
| Straight bar nozzle (Note 1) |
| ER-VAB020 | Effective charge removal length 200 mm 7.874 in | Straight-line bar containing a series of holes | |
| ER-VAB032 | Effective charge removal length 320 mm 12.598 in | ||||
| ER-VAB065 | Effective charge removal length 650 mm 25.591 in | ||||
| Shape-preserving tube (Note 2) | Joint nozzle |
| ER-VAJK | Joint nozzle for ionizer main unit and shape-preserving tube | |
| ER-VAK10 | Tube length 112 mm 4.409 in | Bends easily and holds its bent shape so the tube does not need to be secured (Tube diameter: ø10 mm ø0.394 in Minimum bending radius: R40 mm R1.575 in) | |||
| ER-VAK30 | Tube length 312 mm 12.283 in | ||||
| ER-VAK50 | Tube length 512 mm 20.157 in | ||||
| Conductive tube | Joint nozzle |
| ER-VAJT-64 | Joint nozzle for ionizer main unit and conductive tube | |
| ER-AT50 | Tube length 500 mm 19.685 in | This flexible conductive tube is suitable for a variety of applications since it can be cut to the desired length. (Tube diameter: ø6 mm ø0.236 in Minimum bending radius: R15 mm R0.591 in) | |||
| Tube joint set (Note 3) |
| ER-VAB-AT | Tube length 500 mm 19.685 in | This set includes flexible, free-cut conductive tube and a joint nozzle. (Tube diameter: ø8 mm ø0.315 in Minimum bending radius: R25 mm R0.984 in) Compatible nozzles: straight nozzles (Effective charge removal length 320 mm 12.598 in or less) | |
| ER-VAB-ATL | Tube length 500 mm 19.685 in | |||
Notes:
1) In addition to the effective charge removal lengths listed above, we can supply models with an effective charge removal length ranging from 100 to 640 mm 3.937 to 25.197 in in 10 mm 0.394 in increments on a special-order basis.
Model number: ER-VAB□N (for an effective charge removal length of 180 mm 7.087 in: ER-VAB018N)
For details, please contact our sales office.
2) We can also supply shape-preserving tubes at lengths shorter than the tube lengths noted above on a special-order basis. For details, please contact our office.
3) For details, please contact our office.
Cables with connector
Cable with connector is not supplied with the ionizer main unit. Please order it separately.
| Appearance | Model No. | Description | |
|---|---|---|---|
| ER-VCCJ2 | Length: 2 m 6.562 ft, Net weight: 52 g approx. | 0.15mm2 8-core cabtyre cable with connector Cable outer diameter: Ø4.2 mm Ø0.165 in |
| ER-VCCJ5 | Length: 5 m 16.404 ft, Net weight: 120 g approx. | ||
| ER-VCCJ9 | Length: 9 m 29.528 ft, Net weight: 240 g approx. | ||
------------------------------ Tab4 showing ------------------------------
Conductive tube holder
ER-ATH
Mini line filter
ER-AF10
ER-AF20
*The photograph shows ER-AF10
AC adapter
ER-VAPS1
Discharge needle unit
ER-VANT2
------------------------------ Tab5 showing ------------------------------
Specifications
Main unit
| Type | Spot type | ||
|---|---|---|---|
| Model No. | ER-VS02 | ||
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), TÜV SÜD certification (U.S.A., Canada) | ||
| Charge removal time (±1,000 V → ±100 V) | 1 sec. or less (Note 2) | ||
| Ion balance | ±10 V or less (Note 2) | ||
| Ozone generation | 0.03 ppm or less (Note 3) | ||
| Applicable fluid | Air (dried clean air) (Note 4) | ||
| Supplied air flow | 500 ℓ/min. (ANR) or less (Note 5) | ||
| Air pressure range | 0.05 to 0.5 MPa (Note 5) | ||
| Supply voltage | 24 V DC ±10 % | ||
| Current consumption | 70 mA or less | ||
| Discharge method | High frequency AC method | ||
| Discharge output voltage | 2,000 V approx. | ||
| Check output (CHECK) | NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between check output and 0 V) ・Residual voltage: 1 V or less (at 50 mA sink current) | ||
| Output operation | ON when a dirt or worn etc. of the discharge needle is detected for 1.5 sec. or more continuously, OFF when operation is normal (Note 6) | ||
| Short-circuit protection | Incorporated | ||
| Error output (ERROR) | NPN open-collector transistor ・Maximum sink current: 50 mA ・Applied voltage: 30 V DC or less (between error output and 0 V) ・Residual voltage: 1 V or less (at 50 mA sink current) | ||
| Output operation | OFF when abnormal discharge is detected, ON when operation is normal | ||
| Short-circuit protection | Incorporated | ||
| Discharge halt input (DSC OFF) (Note 7) | Short-circuit to 0 V: Discharge halt, Open: Discharge allowed (operation start) | ||
| Reset input (RESET) | When abnormal discharge is detected, discharge is halted due to an error. Reset the discharge halt by briefly shorting the power supply's 0 V line. | ||
| Indicators | Power(POWER) | Green LED (lights up when the power is ON) | |
| Discharge(DSC) (Note 7) | Green LED (lights up when discharging) | ||
| Check(CHECK) | Orange LED (lights up when the discharge needle is worn or dirty, etc.) (Note 6) | ||
| Error(ERROR) | Red LED (lights up when abnormal discharge is detected) | ||
| Environmental resistance | Ambient temperature | 0 to +55 ℃ +32 to +131 ℉ (No dew condensation allowed) | |
| Ambient humidity | 35 to 65 % RH | ||
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each | ||
| Cable | Cable with a connector, 0.5 m 1.640 ft long | ||
| Material | Enclosure: PPS, Cover: Stainless steel, Discharge needle: Tungsten | ||
| Weight | Net weight: 120 g approx. | ||
| Accessory | Connector for wiring: 1 set [Manufactured by Molex: Housing (5557-08R), Terminal (5556TL)] | ||
Note:
1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.
2) A typical sample applied with a supply voltage of 24 V, a distance of 100 mm 3.937 in from the front surface of the air flow outlet and a pressure of 0.25 MPa while the shower nozzle is in use. (Measured on a sample left in the atmosphere at a relative humidity of 65 % RH or less for 24 hours or more.)
3) A typical sample applied with a power voltage of 24 V, a distance of 300 mm 11.811 in from the front surface of the air flow outlet and a pressure of 0.25 MPa while the shower nozzle is in use.
4) Dried clean air is the air passing through air dryer (dew point –20℃ –4℉ approx.) and air filter (mesh size 0.01 μm 0.0004 mil approx.)
5) The applicable pressure range depends on the nozzle to be used.
6) When confirming the check output, carry out discharge for 2 sec. or more.
7) ”DSC” is an abbreviated name of ”DISCHARGE”.
Nozzles / Tubes
| Type | Shower nozzle | Straight bar nozzle 200 mm 7.874 in | Straight bar nozzle 320 mm 12.598 in | Straight bar nozzle 650 mm 25.591 in |
|---|---|---|---|---|
| Model No. | ER-VAS | ER-VAB020 | ER-VAB032 | ER-VAB065 |
| Supplied air pressure range | 0.05 to 0.40 MPa | |||
| Charge removal range | - | 200 mm 7.874 in | 320 mm 12.598 in | 650 mm 25.591 in |
| Material | Stainless steel | |||
| Accessories | Attachment and insulation pipe: 1 pc. each | Attachment and insulation pipe: 1 pc. each, Straight bar nozzle holder: 1 set | ||
| Type | Shape-preserving tube joint nozzle | Conductive tube joint nozzle |
|---|---|---|
| Model No. | ER-VAJK | ER-VAJT-64 |
| Air pressure range | 0.02 to 0.5 MPa | 0.02 to 0.4 MPa .(Maximum applied pressure depends on the tube length. Refer to the following figure) |
| Material | Stainless steel | Stainless steel |
| Supplied air flow | 30 to 250 ℓ/min. (ANR) | 20 to 100 ℓ/min. (ANR) (at applied pressure of 0.02 to 0.4 MPa) |
| Accessories | Attachment (White): 1pc. Insulation pipe: 1pc. | Attachment (White): 1pc. Insulation pipe: 1pc. |
・Correlation between tube length and maximum applied pressure
| Type | Shape-preserving tube | Conductive tube | ||
|---|---|---|---|---|
| Model No. | ER-VAK10 | ER-VAK30 | ER-VAK50 | ER-AT50 |
| Tube length | 112 mm 4.409 in | 312 mm 12.283 in | 512 mm 20.157 in | 500 mm 19.685 in |
| Material | Tube interior: Aluminum Tube sheath: High-density polyethylene Terminal cap: Stainless steel | Urethane | ||
| Air pressure range | 0.02 to 0.5 MPa | 0.02 to 0.4 MPa | ||
| Minimum bending radius | R40 mm R1.575 in or more | R15 mm R0.591 in or more | ||
| Type | Tube and joint set |
|---|---|
| Model No. | ER-VAB-AT |
| Compatible nozzles | Straight nozzle (effective charge removal length 320 mm 12.598 in or less) |
| Tube length | 500 mm 19.685 in |
| Material | Nozzle: Stainless steel (SUS), Conductive tube: Urethane |
| Supplied air flow | Max. 200 ℓ/min. (ANR) |
| Air pressure range | 0.05 to 0.4 MPa |
| Minimum bending radius | R25 mm R0.984 in (conductive tube portion) |
| Accessories | Attachment (Black) 1 pc., insulated pipe: 1pc., Straight bar nozzle holder: 1 set |
Note: Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉. - Correlation between tube length and maximum applied pressure
------------------------------ Tab6 showing ------------------------------

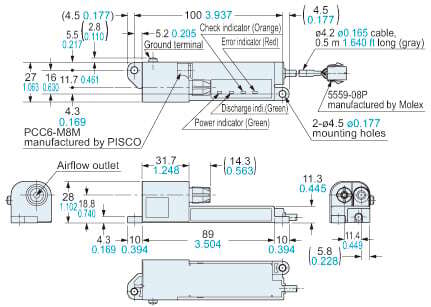

Dimensions
Unit: mm inER-VS02
ER-VS01

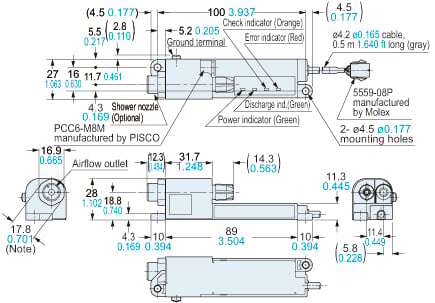

Ionizer main unit
Mounting drawing with shower nozzle (ER-VAS, Optional)
Note:Hexagonal clamping part is 16.9 mm 0.665 in.

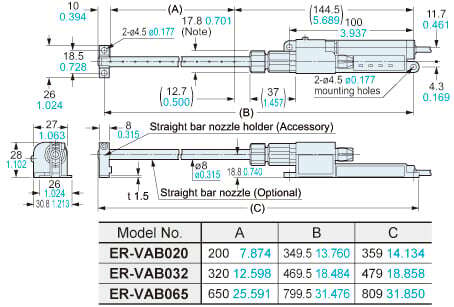

Mounting drawing with straight bar nozzle (ER-VAB□, Optional)
Note:Hexagonal clamping part is 16.9 mm 0.665 in.

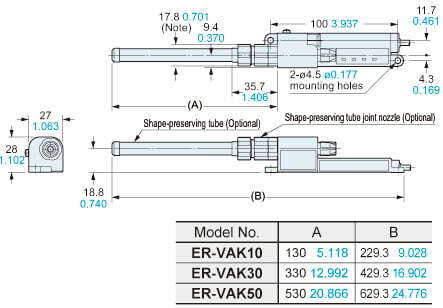

Mounting drawing with shape-preserving tube and joint nozzle (ER-VAK□, ER-VAJK, Optional)
Note:Hexagonal clamping part is 16.9 mm 0.665 in.

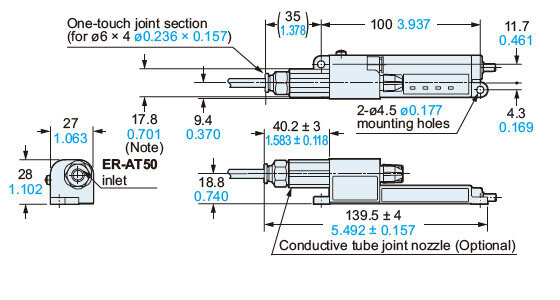

Mounting drawing with conductive tube joint nozzle (ER-VAJT-64, Optional)
Note:Hexagonal clamping part is 16.9 mm 0.665 in.

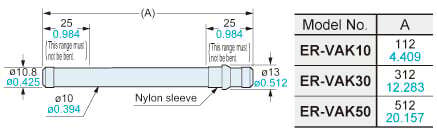

ER-VAK□
Shape-preserving tube (Optional)

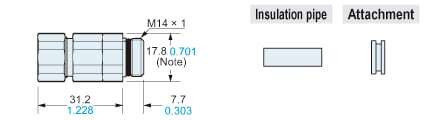

ER-VAJK
Shape-preserving tube joint nozzle (Optional)
Note: Hexagonal clamping part is 16.9 mm 0.665 in.
ER-AT50
Conductive tube (Optional)

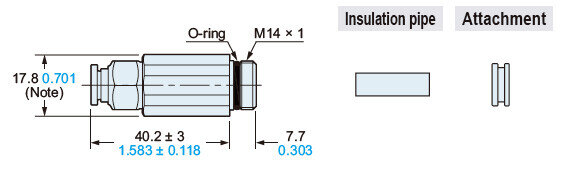

ER-VAJT-64
Conductive tube joint nozzle (Optional)
Note: Hexagonal clamping part is 16.9 mm 0.665 in.

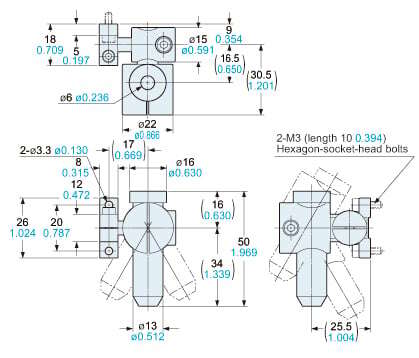

ER-ATH
Conductive tube holder (Optional)

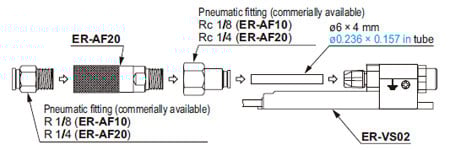

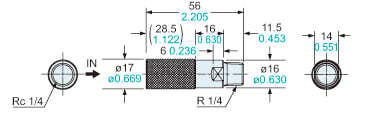

ER-AF10
Mini line filter (Optional)
ER-AF20
Mini line filter (Optional)
------------------------------ Tab7 showing ------------------------------
I/O Circuit and Wiring diagrams
ER-VS02

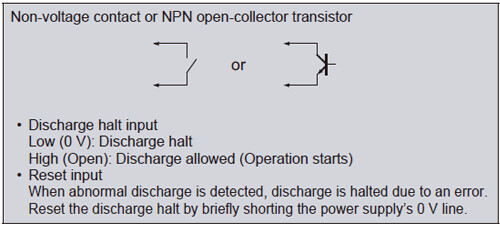

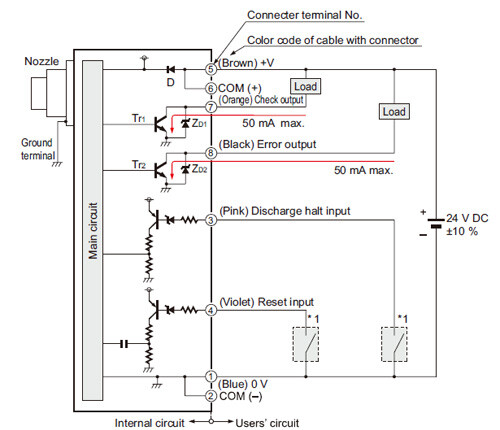

I/O circuit diagram
Symbols・・・
D : Reverse supply polarity protection diode
ZD1, ZD2 : Surge absorption zener diode
Tr1, Tr2 : NPN output transistor
Connector terminal arrangement
| Terminal No. | Description | Color code of cable with connector |
|---|---|---|
| (1) | 0 V | Blue |
| (2) | COM (–) | - |
| (3) | Discharge halt input | Pink |
| (4) | Reset input | Violet |
| (5) | 24 V | Brown |
| (6) | COM (+) | - |
| (7) | Check output | Orange |
| (8) | Error output | Black |
Note:
(1) and (2) are short-circuited at the connector side.
(5) and (6) are short-circuited at the connector side.
------------------------------ Tab8 showing ------------------------------

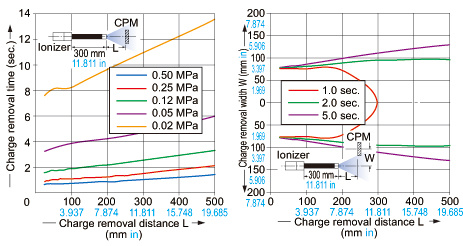

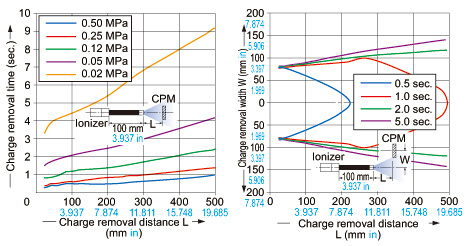

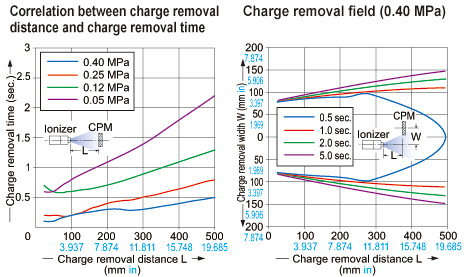

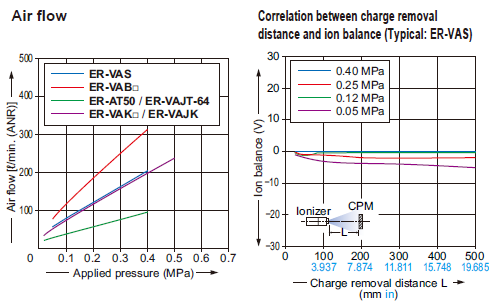

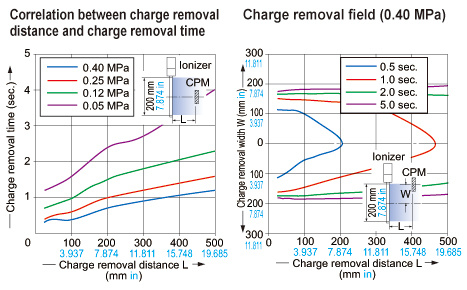

Charge removal characteristics
*TYPICAL
Measured using a □150 mm □5.906 in CPM (charge plate monitor). (At center of CPM)
Common to all nozzles
ER-VAS
Shower nozzle
ER-VAB020
Straight bar nozzle

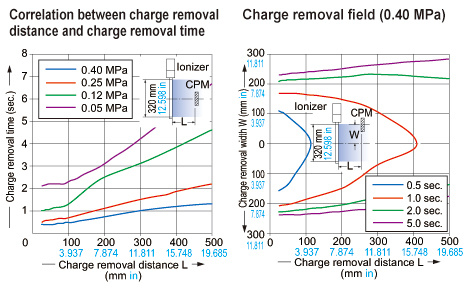

ER-VAB032
Straight bar nozzle

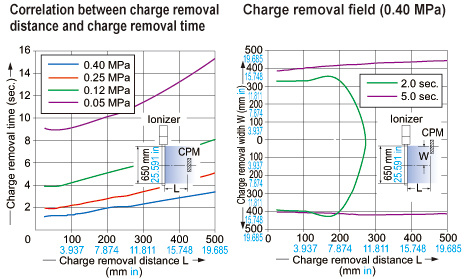

ER-VAB065
Straight bar nozzle

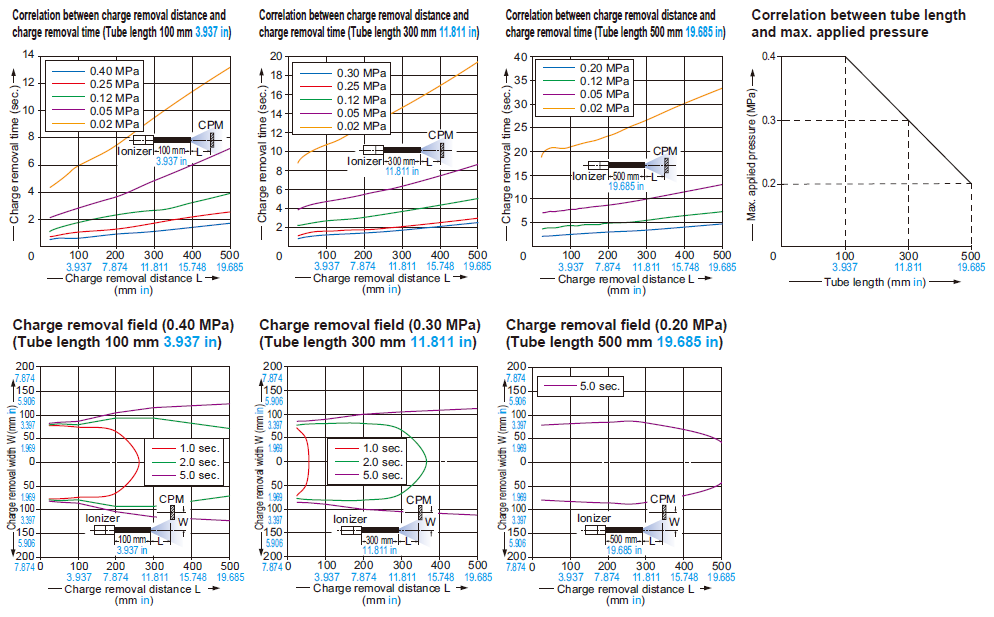

ER-VAJK ER-VAK10
Shape-preserving tube joint nozzle, Shape-preserving tube
ER-VAJK ER-VAK30
Shape-preserving tube joint nozzle, Shape-preserving tube
ER-VAJK ER-VAK50
Shape-preserving tube joint nozzle, Shape-preserving tube

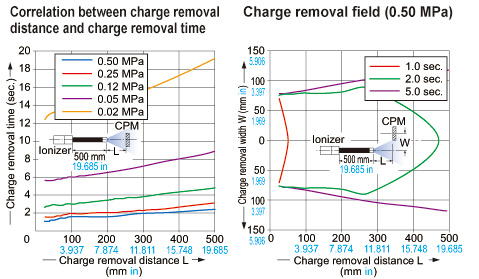

ER-VAJT-64 ER-AT50
Conductive tube joint nozzle, Conductive tube
・Definition of Discharge: The state in which the voltage changes from 1000V to 100V, or from -1000V to -100V.
・Definition of Discharge Time: The average time it takes for discharge to occur on both the positive and negative sides.
------------------------------ Tab9 showing ------------------------------
- After wiring, reconfirm the wiring connections before switching on the power supply.
- Note, wrong wiring will damage the product.
- Verify that the supply voltage variation is within the rating.
- Do not run the wires together with high-voltage lines or power lines or put them in the same raceway. This can cause malfunction due to induction.
Others
・Only connect an isolated DC power supply, for example one equipped with an isolating transformer, or the optional AC adapter ER-VAPS1 to the product.
・If an auto-transformer, etc. (single winding transformer) is used, this product or the power supply may be damaged due to short-circuit.
- Do not use this product beyond its rated specifications. Doing so can cause product breakdown, non-function, or damage. Furthermore, it will also cause a marked reduction in product life.
- Never disassemble, repair, modify, or misuse this product, as this can cause an accident or malfunction.
- Do not throw this product into fire: it may explode or generate poisonous gas.
- Since high voltage is applied to the discharge needle, keep your fingers, body, metal, e.g. wires or tools, etc., away from the needle. If you fail to keep away from the needle, electric shock or malfunction may be the result.
- This product is not explosion-proof. Do not use it in places where combustible or flammable material is present. There is a danger of catching fire.
- Since this product emits ozone into the atmosphere, circulate air to prevent foul smells. If ozone lingers for long periods, metals, etc. may oxidize / decay. Furthermore, do not try to confirm that foul smells are caused by the ozone by drawing your face near the nozzle outlet and air outlet: you may hurt your nose, throat, etc.
- Do not use this product in steamy or dusty places, in places where water and oil splash, or where spatter flies when welding.
- If the power supply is switched on immediately after being switched off, fault output may be generated. After the power supply is switched off, wait at least 1 sec. before switching it on again.
- Confirm the wiring and piping state before supplying power or air. Wrong wiring and piping may cause malfunction.
- Do not use this product for any purpose other than charge removal.
- When this product is no longer usable or required, dispose of properly as industrial waste.
- If the air supplied to this product is turned ON / OFF by a solenoid valve, for example, make sure to turn the discharge halt input ON / OFF simultaneously.
- Use air (dry, clean air) for the fluid. Any fluid other than air (dry, clean air) or even air containing corrosive gas may cause an accident or malfunction.
- Do not use air that contains foreign particles, e.g. carbon dust, dust, water or oil. Since these substances may cause electric shock or malfunction, take appropriate countermeasures, e.g. install an airfilter, air-drier, etc.
Mini line filter
| Designation | Mini line filter | |
|---|---|---|
| Model No. | ER-AF10 | ER-AF20 |
| Applicable ionizer | ER-VS02、ER-SP□ | |
| Applicable fluid | Air | |
| Pipe connection port | R 1/8, Rc 1/8 | R 1/4, Rc 1/4 |
| Collected particle dia. | 0.1μm 0.0004 mil | |
| Collection efficiency | 99.9% | |
| Processed air volume (Note) | 40ℓ/min.（ANR） | 80ℓ/min.（ANR） |
| Membrane area | 29.9cm2 | 68.7cm2 |
| Max. operating pressure | 0.97MPa | |
| Warranted withstand pressure | 1.47MPa | |
| Ambient temperature | ＋5 to ＋45℃ +41 to +113℉ | |
| Material | Main body: Aluminum alloy (Almite processed) Element: Porous, hollow fiber membrane | |
| Net weight | 11 g approx. | 18 g approx. |
Note: Maximum processed air volume that the filter performance can be maintained.
Approximately 0.1 MPa of pressure drop occurs with the max. processed air volume.
Piping
<Mounting example of ER-AF20 + ER-VS02>
- Fit the pneumatic fittings on the both sides of this product to connect to the pneumatic tube, as the figure shown above.
Notes:
1)Since this product is made by aluminum alloy, make sure that excessive force is not applied.
2) This product is for removal of solid particles. Remove water, oil, etc., in the primary pressure side.
Cautions
- Before the piping, make sure to sufficiently carry out internal flashing (blowing of compressed air) of the pipe. If scrap or sealing tape, generated during work, or rust, etc., gets inserted, it will cause clogging.
- Use air (dry,clean air) which does not contain water, oil, etc. Water or oil will cause clogging or reduction in performance.
- Do not use with a fluid or in an environment containing the following substances:
• Organic solvents · Ester phosphate type hydraulic fluid
• Sulfuric acid gas · Chlorine gas · Acids - This product is for industrial use. Do not use it in equipment affecting human life.
- Never disassemble or modify this product.
- When disposing this product, dispose it as industrial waste.
Pressure drop
- When the mini line filter (ER-AF10/AF20) is fitted, a pressure drop occurs. Adjust the primary air pressure so that the secondary air pressure is within the air pressure range of the ionizer. (Take are that the air pressure range differs depending on the nozzle. Furthermore, in case the filter is used with the max. processed air volume, approximately 0.1 MPa of pressure drop occurs.)
- Take care that if the air more than the specified processed air volume is applied, the efficiency will deteriorate.
