High-functional Digital Panel Controller CA (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Specifications

Ⅾiscontinued

Last time buy (JST)

September 30, 2008

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

Discontinued Products

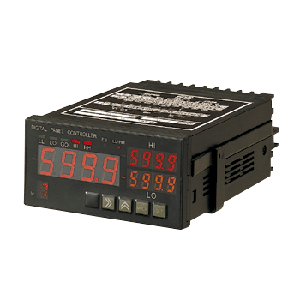

pic01-1

*Photo may vary from actual product.

Specifications

TypeRelay outputTransistor output
 With BCD output
Basic model No.CA-R□CA-T□CA-B□
Supply voltage100 to 240 V AC ± 10 %
Power consumption17 VA or less
Power supply for sensor12V DC +10/0%、150mA
Analog inputInput rangeCA-□1 : 4 to 20 mA, CA-□2 : 1 to 5 V, CA-□3 : ±1 V,
CA-□4 : ±5 V, CA-□5 : ±10 V
Input impedanceCurrent input: 20 Ω, Voltage input: 1 MΩ (CA-□3: 100 kΩ)
No. of inputs2 Nos.
Input methodSingle endFloating
A/D conversion methodSuccessive approximation method
Sampling period1 ms or more (1,000 times/sec. max.)
Switching inputs
(Process number selection, External synchronization, Zero-adjustment, Reset, Auto-reference, Hold)		Operation: Negative logic
Signal condition: 5 V-CMOS · LSTTL compatible
Comparative outputs
(HH, HI, GO, LO and LL)		Relay contact 1a (HH, HI, LO and LL)
Relay contact 1c (GO)
・Switching capacity:
250 V 1 A AC (resistive load)
30 V 1 A DC (resistive load)
・Electrical life:
100,000 switching operations or more
(switching frequency 1,800 operations/hour)
・Mechanical life:
50 million switching operations or more
(Switching frequency 18,000 operations/hour)		NPN open-collector transistor
・Maximum sink current: 100 mA
・Applied voltage: 35 V DC or less (between comparative output and COM.)
・Residual voltage:
1 V or less (at 100 mA sink current)
0.4 V or less (at 16 mA sink current)
 Response time10 ms or less1ms or less
Data outputs
(A0 to D3, POL, DTV, OR)

-

-BCD 4 digits, negative logic
NPN open-collector transistor
・Maximum sink current: 70mA
・Applied voltage: 35 V DC or less (between data output and GND)
・Residual voltage:
1 V or less (at 70 mA sink current)
0.4 V or less (at 16 mA sink current)
Measurement value display3 5/6 digit LED display (letter height: 14.2 mm 0.559 in)
 Display refresh rateSelectable from 0.2, 0.5, 1, 2.5, 10 or 20 times/sec.
Display range–5999 to +5999 ("+" is not displayed)
Display accuracy± (0.1 % rdg + 2 digits) at +23 ± 5 ℃ +73.4 ± 41 ℉
Temperature characteristics±100ppmF.S./℃
Threshold value display3 5/6 digit LED display (letter height: 8 mm 0.315 in)
 Display range–5999 to +5999 ("+" is not displayed)
Process number display1 digit LED display (letter height: 8 mm 0.315 in)
 Display range0 to 7
Main functionsProcess number selection, arithmetic, hold, scaling, auto-reference,
power supply ON-delay, start delay, hysteresis setting, etc.
Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation), strage: –20 to +70 ℃ –4 to +158 ℉
MaterialEnclosure: ABS

Connecting method

Screw-on terminal block [BCD output type: Screw-on terminal block and connector (Note 2)]
WeightNet weight: 500 g approx.
DimensionsW96 x H48 x D145.2 mm W3.780 x H1.890 x D5.717 in
AccessoryUnit seal: 1 set

(Note 1) :Where measurement conditions have not been specifi ed precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

(Note 2) :Purchase the mating connector for the BCD output type separately.
Recommended mating connector: HIF3BA-34D-2.54R (Manufactured by Hirose Electric CO., LTD.)

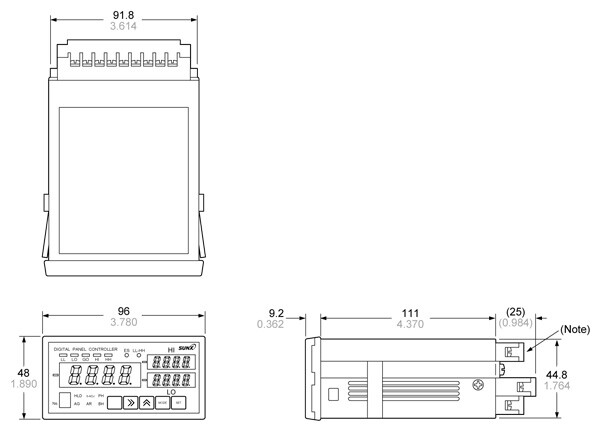

Dimensions

  • Unit: mm in

CA-□

Digital panel controller

(Note) :Connector in case of CA-B□.
HIF3BA-34PA-2.54DS (Manufactured by Hirose Electric CO., LTD.)

Recommended mating connector
HIF3BA-34D-2.54R (Manufactured by Hirose Electric CO., LTD.)

Panel cut-out dimensions

(Note) :The panel thickness should be 0.5 to 5 mm 0.020 to 0.197 in.
