LED Bar Display Pressure Sensor PE (Discontinued Products)

Download

  • Discontinued Products

  • Specifications

  • Dimensions

Ⅾiscontinued

Last time buy (JST)

September 30, 2013

We are sorry, the products have been discontinued. Please refer to the details of the discontinued products and the recommended substitutes list below.

Discontinued Products

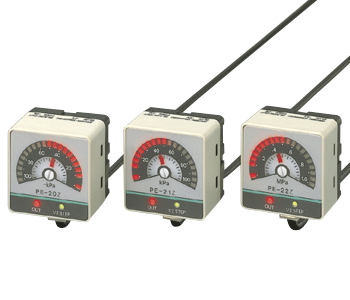

pic01-1

Specifications

TypeVacuum pressurePositive pressure
-101 kPa type100 kPa type1 MPa type
AsiaNorth
America		EuropeAsiaNorth
America		EuropeAsiaNorth
America		Europe
Model No.PE-
20		PE-
20N		PE-
20E		PE-
21		PE-
21N		PE-
21E		PE-
22		PE-
22N		PE-
22E
Type of pressureGauge pressure
Rated pressure range0 to -101 kPa0 to 100 kPa0 to 1 MPa
Set pressure range-10 to -90 kPa10 to 90 kPa0.1 to 0.9 MPa
Pressure withstandability490 kPa1.47 MPa
Applicable fluidNon-corrosive gas
Supply voltage12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption40 mA or less
Output<Asia, North America>
NPN open-collector transistor
・Maximum sink current: 100 mA
<Europe>
PNP open-collector transistor
・Maximum source current: 100 mA
 Output operationON above set pressure level or OFF above set pressure level,
selectable with control input
Response time10 ms or less
Pressure displayIndication with red LED bar plus 1/2 step indicator (Green LED)
 Display resolution2.5 % F.S. or less
ProtectionIP40 (IEC)
Ambient temperature0 to +50 ℃ +32 to +122 ℉ (No dew condensation),
Storage: -10 to +60 ℃ +14 to +140 ℉
Pressure portAsia: R 1/4 male thread and M5 female thread
North America: NPT 1/4 male thread and 10-32UNF female thread
Europe: G 1/8 male thread and M5 female thread
MaterialFront case: PBT, Rear case: PBT, Front panel: Polycarbonate,
Pressure port: Brass (Nickel plated)
WeightNet weight: 85 g approx.
DimensionsW40 x H40 x D54 mm W1.575 x H1.575 x D2.126 in

Note:
Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20 ℃ +68 ℉.

Dimensions

  • Unit: mm in

PE-□

Sensor

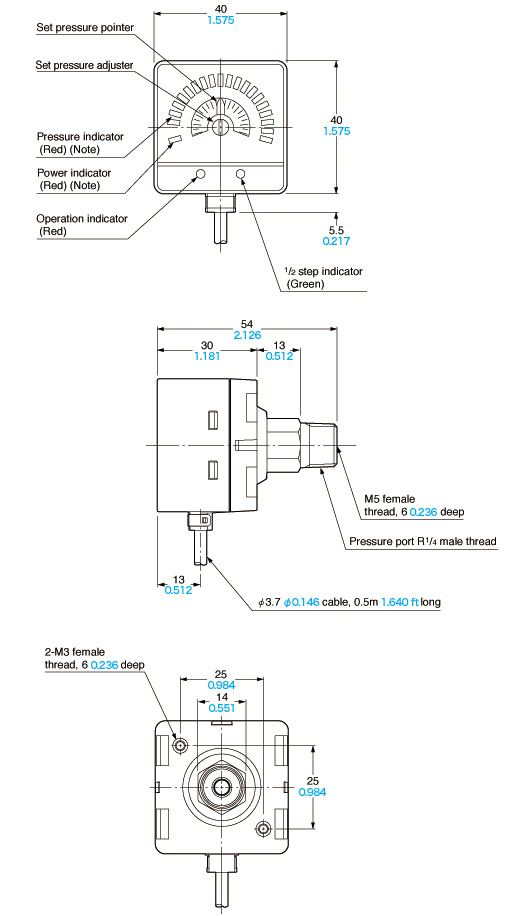

Asia (PE-□)

Asia (PE- )

Note:The figure illustrates the indicator position for PE-21□ (positive pressure).For the vacuum pressure type, the indicator position is symmetrically opposite.

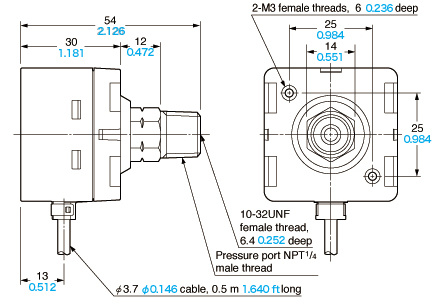

North America (PE-□N)

North America (PE-□N)

Note:The front view is the same as that for the Asia type.

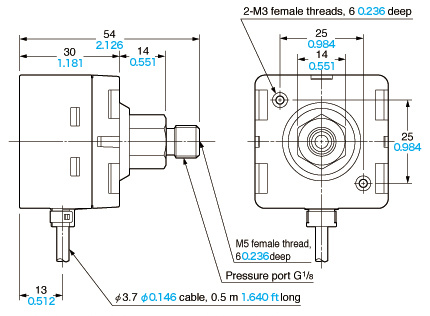

Europe (PE-□E)

Europe (PE-□E)

Note:The front view is the same as that for the Asia type.

MS-PE-1

Sensor mounting bracket (Optional)

MS-PE-1

Material:Cold rolled carbon steel (SPCC)Two M3 (length 8 mm0.315 in) screws with washers are attached.

Assembly dimensions
Mounting drawing with PE-2□

MS-PE-2 MS-PE-3

Panel mounting bracket, front protection cover (Optional)

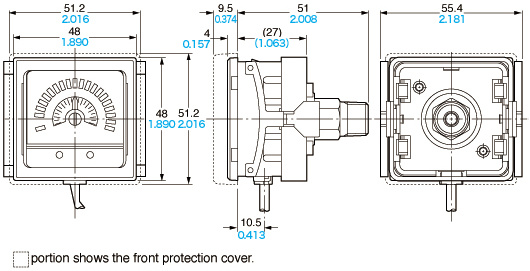

Assembly dimensions Mounting drawing with PE-2□

MS-PE-2 MS-PE-3

Material:Polycarbonate (Front protection cover)Nylon 6, Polyacetal (Panel mounting bracket)

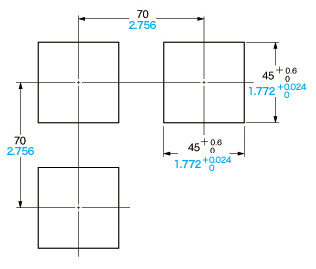

Panel cut-out dimensions

MS-PE-2 MS-PE-3

Note:The panel thickness should be 1 to 3.2 mm 0.039 to0.126 in.
