AFP7TC8｜FP7 Temperature input units

Download

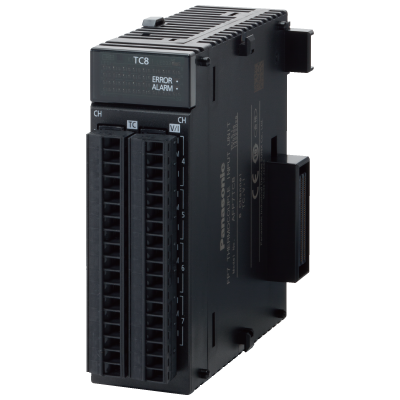

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AFP7TC8

Part Number

AFP7TC8

Product

FP7 Temperature input units

Product Name

 FP7 Temperature input units

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberAFP7TC8
Product NumberAFP7TC8
Products NameFP7 Temperature input units
The price of the productPlease contact our office
Number of channels8 channels
Input range(resolution):Thermocouple(resolution: 0.1℃)K1: -100.0 to 600.0degrees / K2: -200.0 to 1000.0degrees
J1: -100.0 to 400.0degrees / J2: -200.0 to 750.0degrees
T: -270.0 to 400.0degrees / N: -270.0 to 1300.0degrees
R: 0.0 to 1760.0degrees / S: 0.0 to 1760.0degrees
B: 0.0 to 1820.0degrees / E: -270.0 to 1000.0degrees
PLII: 0.0 to 1390.0degrees / WRe5-26: 0.0 to 2315.0degrees
Input range(resolution):Voltage-10 to 10V DC (resolution: 1/62,500)
0 to 5V DC (resolution: 1/31,250)
1 to 5V DC (resolution: 1/25,000)(Note)
-100 to 100mV DC (resolution: 1/62,500)
Resolution: max. 16 bits
(Note) The full scale (F.S.) ranges of accuracy is 1 to 5 V DC for current input, respectively.
Input range(resolution):Current0 to 20 mA (resolution: 1/31,250)
4 to 20 mA (resolution: 1/25,000)(Note)
Resolution: max. 16 bits
(Note) The full scale (F.S.) ranges of accuracy is 0 to 20 mA for current input, respectively.
Conversion speed5 ms/channel + 5 ms (Note)
25 ms/channel + 25 ms
Add the drift compensation measuring time to the number of measuring channels.
(Note) The AC noise removal is disabled.
Overall accuracyplus or minus 0.1%F.S.or less(at +25degrees +77degrees Fahrenheit )
plus or minus 0.3%F.S.or less(at 0 to +55degrees +32 to +131degrees Fahrenheit )
Reference contact compensation accuracyplus or minus 1.0degrees (with thermocouple input)
Input impedance:Voltage1 MOhm
Input impedance:Current250 Ohm
Insulation method:Between input terminals and internal circuitPhotocoupler and isolated DC/DC converter
Insulation method:Between channelsPhotoMOS relay
Conversion execution / non-execution channel settingSelectable per channel unit
Input range change methodSelectable per channel
Digital processing:AveragingCycle, time, moving
Digital processing:Scale conversion settingAny value within plus or minus 30,000 (Voltage and current range only)
Digital processing:Offset settingAny value within plus or minus 3,000
Digital processing:Gain settingplus or minus 10%
Comparison of upper and lower limit valuesSelectable for one channel
Max. and min. value holdingSelectable for one channel
Broken wire detectionAvailable
Connection methodConnector type terminal block

COMMON GENERAL SPECIFICATIONS

ItemSpecifications
Ambient temperature0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
Vibration resistance5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
Shock resistance147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
Noise immunity1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
Operating conditionFree from corrosive gasses and excessive dust

INDIVIDUAL GENERAL SPECIFICATIONS

ItemSpecifications
Rated voltage range-
Current consumption80 mA or less
Net weight145 g approx.
Accessory-
