AFP7HSC2T｜FP7 High-speed Counter

Download

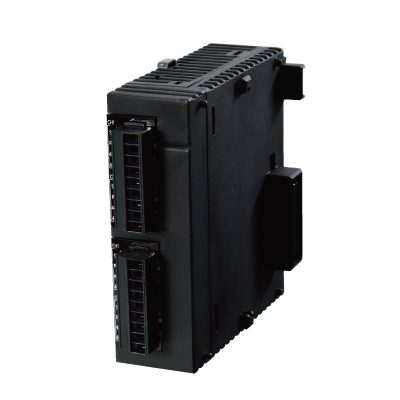

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

Product Number

AFP7HSC2T

Part Number

AFP7HSC2T

Product

FP7 High-speed Counter Units

Product Name

 FP7 High-speed Counter

Contact Us

*Specifications and design of the products are subject to change without notice for the product improvement.

Spec Detail

Specifications and design of the products are subject to change without notice for the product improvement.
ItemSpecifications
Part NumberAFP7HSC2T
Product NumberAFP7HSC2T
Products NameFP7 High-speed Counter Units
The price of the productPlease contact our office
Input:Insulation methodPhotocoupler insulation
Input:Rated input voltage12 to 24 V DC / 3.5 to 5 V DC
Input:Input impedance:24 V DC3.0 kOhm approx.
Input:Input impedance:5 V DC390 Ohm (5 V DC) approx.
Input:Usage voltage range:24 V DC10.8 to 26.4 V DC
Input:Usage voltage range:5 V DC3.5 to 5.25 V DC
Input:Min. ON voltage / Min. ON current:24 V DC10 V DC / 4 mA
Input:Min. ON voltage / Min. ON current:5 V DC3.0 V DC / 4 mA
Input:Max. OFF voltage / Max. OFF current:24 V DC2.0 V DC / 2 mA
Input:Max. OFF voltage / Max. OFF current:5 V DC1.0 V DC / 0.5 mA
Input:Input time constant settingNone, 0.1 micro s, 0.2 micro s, 0.5 micro s, 1.0 micro s, 2.0 micro s and 10.0 micro s
Count function:No. of counters2ch
Count function:Counter typeLinear counter / Ring counter
Count function:Counting rangeSigned 32-bit (-2,147,483,648 to +2,147,483,647)
Count function:Max. input frequency4 MHz / 8 MHz for individual input (phases A and B) (Duty ratio 50 plus or minus 10 %), 4 MHz / 8 MHz for direction discrimination input (Duty ratio 50 plus or minus 10 %), 4 MHz / 8 MHz /16 MHz for 2-phase input (Duty ratio 50 plus or minus 10 %, Phase shifting below 5 %)
Count function:Input signalPhases A, B and Z
Count function:External I/OControl signal input: 4 points (2 points/ch), External output: 4 points (2 points/ch)
Count function:Counter input typeIndividual input (Phases A and B): 1 multiple, 2-multiple
Direction discrimination input: 1 multiple, 2-multiple
2-phase input: 1 multiple, 2-multiple, 4-multiple
Measurement function:Frequency measurement functionMeasures the intervals between the variations of count values, and calculates the frequency.
Comparison function:Target value match functionDepending on the count direction, sets or resets the output when the counter value reaches the target value.
External output:Comparison result output functionOutputs the result of comparison function.
Other functions:Capture functionAcquires the current count value from the edges of input signals, and stores it in the capture 0 register or capture 1 register. The value of the specified capture register will be overwritten by a new value and the old value will be discarded every time a counter value is captured.
Other functions:Interrupt input functionAvailable (2 points/ch, Max. 8 points/unit)
(Note) The interrupt input function can be used for 8 points per unit and for a maximum of 8 units (max. 64 points) in the whole system. However, the entire scan time slows down as more interrupt programs are used. Minimize the use of interrupt programs.
(Note) The priority order for interrupt inputs is as follows; In a unit, from the smallest interrupt bit. In the whole system, from the smallest unit number.

COMMON GENERAL SPECIFICATIONS

ItemSpecifications
Ambient temperature0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
Ambient humidity10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
Vibration resistance5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
Shock resistance147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
Noise immunity1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
Operating conditionFree from corrosive gasses and excessive dust

INDIVIDUAL GENERAL SPECIFICATIONS

ItemSpecifications
Rated voltage range-
Current consumption65 mA or less
Net weight130 g approx.
