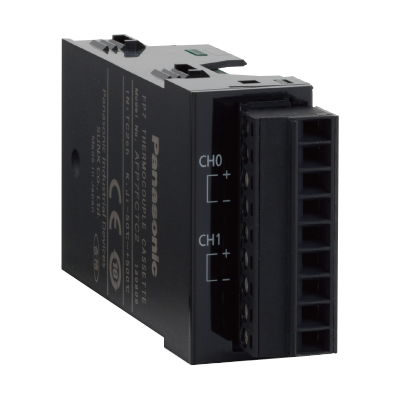

AFP7FCTC2｜FP7 Add-on cassettes (function cassettes)

Download

Discontinued

Last time buy (JST)

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AFP7FCTC2

    Part Number

    AFP7FCTC2

    Product

    FP7 Add-on cassettes (function cassettes)

    Product Name

    		 FP7 Add-on cassettes (function cassettes)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAFP7FCTC2
    Product NumberAFP7FCTC2
    Products NameFP7 Add-on cassettes (function cassettes)
    The price of the productPlease contact our office

    仕様

    ItemSpecifications
    Number of input points2 channels (insulated between channels)
    Input range:K type thermocouple- 50.0 to 500.0 degrees - 58.0 to 932.0 degrees Fahrenheit
    Input range:J type thermocouple- 50.0 to 500.0 degrees - 58.0 to 932.0 degrees Fahrenheit
    Digital conversion value:Normal timeK- 500 to K5000
    Digital conversion value:When range overK- 501, K5001 or K8000
    Digital conversion value:When the thermocouple brokenK8000
    Digital conversion value:When data preparationK8001
    Resolution0.2 degrees (Display is 0.1 degrees with the software averaging process.)
    Sampling cycle100 ms / 2 channels
    Overall precisionplus or minus 0.5 % F.S. or less and cold contact accuracy: 1.5 degrees (0 to +55 degrees +32 to +131 degrees Fahrenheit )
    Input impedance344 kOhm
    Insulation method- Between analog input terminal and internal digital circuit: transformer insulation, isolation IC insulation
    - Between analog input terminal and analog output terminal: transformer insulation, isolation IC insulation
    Connection methodConnector type terminal block

    COMMON GENERAL SPECIFICATIONS

    ItemSpecifications
    Ambient temperature0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉
    Ambient humidity10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)
    Vibration resistance5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions
    Shock resistance147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)
    Noise immunity1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)
    Operating conditionFree from corrosive gasses and excessive dust

    INDIVIDUAL GENERAL SPECIFICATIONS

    ItemSpecifications
    Rated voltage range-
    Current consumption45 mA or less
    (Note) This value is the increase in CPU current consumption.
    Net weight25 g approx. (with terminal block)
