Specifications
| Model No. | LP-GS051 | |
|---|---|---|
| Marking laser | Laser type | CO2 laser, Wavelength: 10,600 nm 0.417 mils, Class 4 laser |
| Average output*1 | 5W | |
| Laser oscillation | CW oscillation | |
| Guide laser | Red semiconductor laser, Wavelength: 655 nm 0.026 mil, Class 2 laser Maximum output: 1 mW or less | |
| Laser pointer | Red semiconductor laser, Wavelength: 655 nm 0.026 mil, Class 2 laser Maximum output: 1 mW or less | |
| Scanning method | Galvano-scanning method | |
| Marking field | 55 x 55 mm 2.165 in x 2.165 in | |
| Work distance (center position)*2 | 111 mm 4.370 in | |
| Work distance range | 108 to 114 mm 4.252 to 4.488 in | |
| Scan speed*3 | Maximum 3,000 mm/sec. 118.110 in/sec. | |
| Registration file quantity | 10,000 files | |
| Marking data quantity | 2,000/file | |
| Marking object types | Character types | English uppercase letters, English lowercase letters, numerals, katakana, hiragana, kanji (JIS No. 1 and No. 2 standards), symbols, user-registered characters (up to 50) |
| Barcodes | Code 39, Code 128, ITF, NW-7, JAN (EAN) / UPC | |
| 2D codes | QR code, Micro QR code, iQR code, Data Matrix, GS1 Data Matrix | |
| Graphic data | VEC*4, DXF, BMP, HPGL, JPEG, AI, EPS | |
| Character height / width*3 | 0.1 to 55 mm 0.004 to 2.165 in | |
| Marking shape | Straight line, arc, proportional, justify | |
| Marking condition | Stationary | |
| I/O ports | I/O terminal (40-pin), I/O connector (40-pin) | |
| Serial communication interface | EIA-RS-232C, Ethernet | |
| Power supply | 90 to 132 V AC or 180 to 264 V AC (includes ±10 % voltage fluctuation)*5, frequency 50 / 60 Hz | |
| Power consumption | At 100 V AC | 370 VA or less (4.2 A or less) |
| At 200 V AC | 500 VA or less (2.8 A or less) | |
| Cooling method | Forced air cooling to both head and controller | |
| Ambient temperature*6 | 0 to +40 ℃ +32 to +104 ℉ | |
| Ambient temperature for storage*6 | −10 to +60 ℃ +14 to +140 ℉ | |
| Ambient humidity*6 | 35 to 85 % RH | |
| Main unit net weight | Head | Approx. 11 kg |
| Controller | Approx. 8 kg | |
*1 Output at product processing edge (at configured power of 100).
*2 There is an approx. ±0.5 mm 0.020 in individual difference in work distance center position.
*3 Values listed here are the variable range. Setting values that can maintain marking or processing quality differ based on marking conditions and target materials.
*4 VEC is an exclusive laser marker image file format.
*5 Power supply is auto-switching.
*6 Common to controller and head. No dew condensation or icing allowed. If a unit was stored at a temperature other than ambient temperature, sufficient time should be given to reach ambient temperature before use.
Software for PC Setting of Laser Marker
| Software | Supported OS |
|---|---|
| Laser Marker NAVI smart*1 | Microsoft Windows® 10 Pro (32 bit / 64 bit) / 8 Pro (32 bit / 64 bit) / 7 Professional (32 bit / 64 bit) SP1 |
| Laser Marker NAVI smart connection methods | USB, Ethernet, Bluetooth*2 |
*1 Does not run on Windows®8 RT.
Windows® 10 Pro, 8 Pro and 7 Professional are trademarks or registered trademarks of Microsoft Corporation in the United State and other countries.
*2 Bluetooth cannot be used with model names containing "-F".
Lineup
| Model No. | Z-axis control function | Bluetooth function | ||
|---|---|---|---|---|
| LP-GS051-F | LP-GS051-FE | LP-GS051-FN | Yes | No |
An "E" or "N" at the end of the Model No. indicates the specifi cation of the included controller power cable.
E: Rating 250 V, CE Mark-compliant AC cable is included.
N: Rating 250 V, CCC-certifi ed AC cable (for China) is included.
Others: Rating 125 V, PSE, CSA and UL-certifi ed AC cable is included.
Precautions for Proper Use
■Laser safety
- This device is classified as a Class 4 Laser Product in IEC / JIS / FDA regulations 21 CFR 1040.10 and 1040.11. Never look at or touch the direct laser beam and its refl ection.
Take safety measures to satisfy reqirements of regulations. - The following labels are attached to this laser marker. (Warning labels are not shown in laser marker photographs in this website.)
- The laser beam is infrared light that is invisible to the human eye. Use particular caution when the laser is operating.
■Maintenance
・Air filter: Regularly clean the air filter attached to this laser marker to maintain cooling effects.
・Laser emission port: Dust or contamination adhering to the laser emission port may affect the marking quality or seriously damage the Laser Marker. Clean the laser emission port regularly.
■Recommend to install a dust collector
- Depending on the material of the marking objects, dust and/or smoke harmful to the human body and the Laser Marker may be generated. Reflection or absorption of laser beam by smoke may also adversely affect marking quality. When using a Laser Marker, using a dust collector is recommended.
*For more information, contact your sales representative.
Dimensions
- Unit: mm in

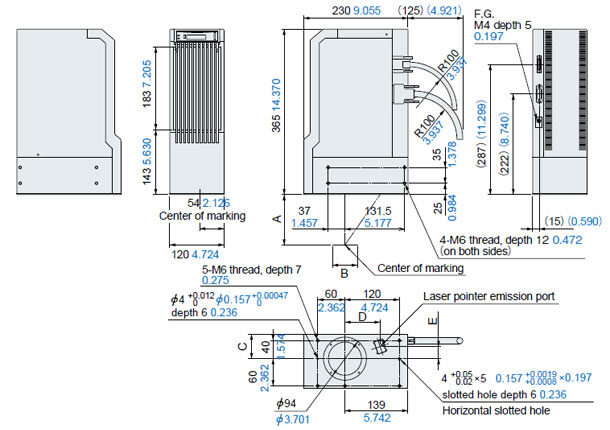

Head
| Model No. | A | B | C | D | E |
|---|---|---|---|---|---|
| LP-GS051 | 111 4.370 | 55 × 55 2.165 × 2.165 | 54 2.126 | 77.5 3.051 | 27 1.063 |

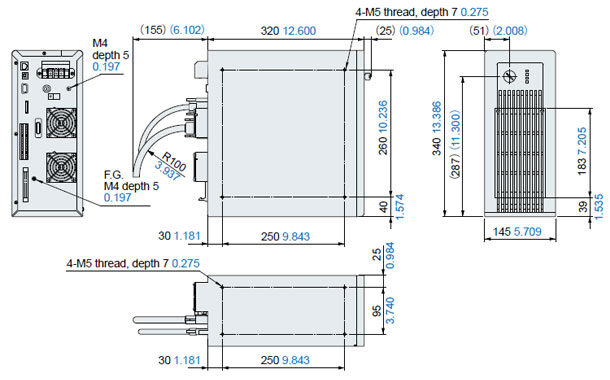

Controller
