Specifications
2D code reader unit
| Type | Standard type | Long-distance type | ||
|---|---|---|---|---|
| Model No. | LP-ABR11 | LP-ABR12 | ||
| CE marking directive compliance | EMC Directive, RoHS Directive | |||
| Image sensor | 1/3 inches CMOS monochrome | |||
| Effective pixels | 1,280 × 960 (1.2 million pixels approx.) | |||
| Internal illumination source | White LED | |||
| Reading angle | PITCH: ±35°, SKEW: ±35°, TILT: 360° | |||
| Supply voltage | 24 V DC ±10 % | |||
| Power consumption | Command (SYNC) standby: 140 mA approx., During reading operation: 400 mA approx. | |||
| Interface | Ethernet | 10Base-T, 100Base-T, 1000Base-T | ||
| RS-232C | 1,200 bps to 115.2 kbps | |||
| Digital input | Photo-coupler isolation × 1 (Input resistance: 1 kΩ, OFF voltage: 0 to 0.8 V, ON voltage: 6 to 28 V) | |||
| Digital output | Photo-coupler isolation × 4 (Maximum rating: 30 V DC, 50 mA) | |||
| Environmental resistance | Protection | IP65(IEC) | ||
| Ambient temperature | 0 to +40 ℃ +32 to +104 ℉, Storage: -20 to +65 ℃ -4 to +149 ℉ | |||
| Ambient humidity | 35 to 85 % RH (No dew condensation allowed), Storage: 35 to 85 % RH (No dew condensation allowed) | |||
| Vibration resistance | 10 to 55 Hz amplitude 1.5 mm 0.059 in (total width) in X, Y, Z directions for two hours each | |||
| Weight | Net weight: 200 g approx. | |||
Read function
| Type | Standard type | Long-distance type |
|---|---|---|
| Model No. | LP-ABR11 | LP-ABR12 |
| Supported symbols (2D) | Data Matrix (ECC200), QR Code | |
| Minimum resolution | 0.167 mm 0.007 in | |
| Read center distance | 100 mm 3.937 in | 200 mm 7.874 in |
| View area (horizontal × vertical) | 54 × 40 mm 2.126 × 1.575 in (at read center distance) | 44 × 33 mm 1.732 × 1.299 in (at read center distance) |
| Reading distance (typical) | <Data Matrix (ECC200), QR Code> • For cell size of 0.167 mm 0.007 in : 85 to 125 mm 3.346 to 4.921 in • For cell size of 0.25 mm 0.010 in : 70 to 150 mm 2.756 to 5.906 in | <Data Matrix (ECC200)> • For cell size of 0.167 mm 0.007 in : 185 to 220 mm 7.283 to 8.661in • For cell size of 0.25 mm 0.010 in : 175 to 230 mm 6.89 to 9.055 in <QR Code> • For cell size of 0.167 mm 0.007 in : 190 to 215 mm 7.48 to 8.465 in • For cell size of 0.25 mm 0.010 in : 180 to 225 mm 7.087 to 8.858 in |
* Cell size of 0.25 mm 0.010 in or larger is recommended (horizontal direction) when the 2D code print quality verification function is used.
Reading distance – View area (typical)
Standard type LP-ABR11
(Unit: mm in)
| Supported symbols (2D) | Data Matrix (ECC200), QR Code | ||
|---|---|---|---|
| Cell size | 0.167 0.007 | 0.25 0.010 | |
| Near | Reading distance | 85 3.346 | 70 2.756 |
| View area (horizontal × vertical) | 46 × 34 1.811 × 1.339 | 38 × 29 1.496 × 1.142 | |
| Center | Reading distance | 100 3.937 | |
| View area (horizontal × vertical) | 54 × 40 2.126 × 1.575 | ||
| Far | Reading distance | 125 4.921 | 150 5.906 |
| View area (horizontal × vertical) | 66 × 50 2.598 × 1.969 | 79 × 60 3.11 × 2.362 | |
Long-distance type LP-ABR12
(Unit: mm in)
| Supported symbols (2D) | Data Matrix(ECC200) | QR Code | |||
|---|---|---|---|---|---|
| Cell size | 0.167 0.007 | 0.25 0.010 | 0.167 0.007 | 0.25 0.010 | |
| Near | Reading distance | 185 7.283 | 175 6.890 | 190 7.480 | 180 7.087 |
| View area (horizontal × vertical) | 40 × 30 1.575 × 1.181 | 38 × 28 1.496 × 1.102 | 42 × 31 1.654 × 1.220 | 39 × 29 1.535 × 1.142 | |
| Center | Reading distance | 200 7.874 | 200 7.874 | ||
| View area (horizontal × vertical) | 44 × 33 1.732 × 1.299 | 44 × 33 1.732 × 1.299 | |||
| Far | Reading distance | 220 8.661 | 230 9.055 | 215 8.465 | 225 8.858 |
| View area (horizontal × vertical) | 49 × 37 1.929 × 1.457 | 51 × 38 2.008 × 1.496 | 48 × 36 1.890 × 1.417 | 50 × 37 1.969 × 1.457 | |
Dimensions
- Unit: mm in

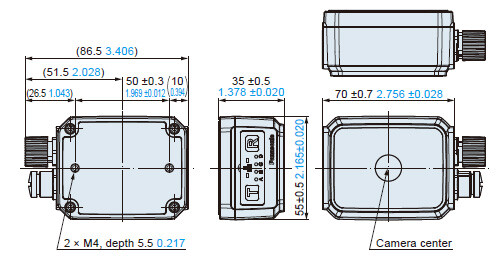

LP-ABR11
2D code reader
Standard type

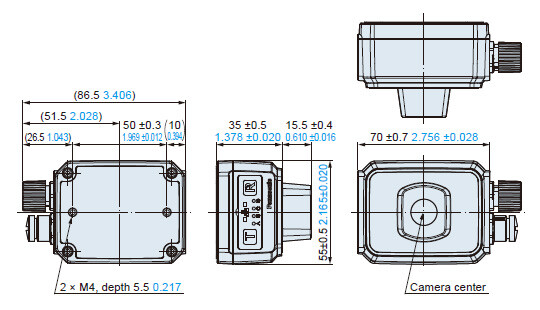

LP-ABR12
2D code reader
Long-distance type

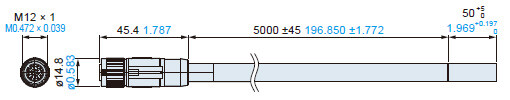

LP-ABR10-C5
Control cable (sold separately)
LP-ABR10-L5
LAN cable (sold separately)
