ACF231｜CF Relays(Discontinued)

Download

Discontinued

Last time buy (JST)

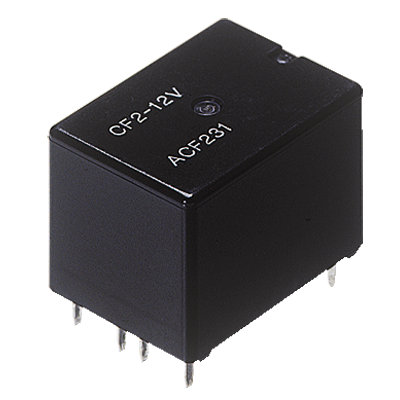

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    CF2-12V

    Part Number

    ACF231

    Details

    1 Form C x 2 (8 pins)

    Product Name

    		 CF Relays(Discontinued)

    Features

    7 Amp steady/30 Amp lnrush current capability. Simple footprint enables of PC board layout. Twin(1 Form C x 2)
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberACF231
    Product NumberCF2-12V
    Product details1 Form C x 2 (8 pins)
    Protective constructionSealed
    Terminal shapePC board type
    Operating functionSingle side stable
    Rated coil voltage12V DC
    Pick-up voltageMax. 7.2V DC (at20℃) (Initial)
    Drop-out voltageMin. 1.0V DC (at20℃) (Initial)
    Rated operating Power640 mW
    Contact arrangement1 Form C x 2 (8 pins)
    Contact materialAg alloy (Cadmium free)
    Rated switching capacity (resistive)N.O.side: 20A 14V DC, N.C.side: 10A 14V DC
    Min. switching load (resistive)1A 14V DC
    Dielectric strength (Between open contacts) (Initial)1,000 Vrms for 1 min. (Detection current: 10mA)
    Dielectric strength (Between contacts and coil) (Initial)1,000 Vrms for 1 min. (Detection current: 10mA)
    Expected life: Mechanical lifeMin. 106 (at 120 cpm)
    Expected life: ElectricalMin. 2x105
    Ambient temperatureAmbient temperature: –40 to +85℃
    Humidity: 5 to 85% R.H. (Please avoid icing or condensation)
    Packing styleTube
