APQ3311｜PQ Relays(Discontinued)
Download
Discontinued
Last time buy (JST)

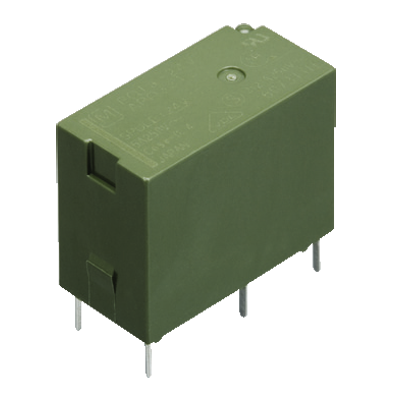

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | PQ1a-12V |
|---|---|
| Part Number | APQ3311 |
| Product Name | PQ Relays(Discontinued) |
| Features | 1 Form A 5A small size power relay for interface |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | APQ3311 |
| Product Number | PQ1a-12V |
| Protective construction | Sealed |
| Operating function | Single side stable |
| Terminal shape | PC board terminal |
| Accessories | Sockets are available. |
| Standard packing Carton (pieces) | 100 |
| Standard packing Case (pieces) | 500 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 12 V DC |
| Operate voltage (at20℃) | Max. 75% V of rated coil voltage (Initial) |
| Release voltage (at20℃) | Min. 5% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | 16.7 mA |
| Coil resistance [±10%] (at 20℃) | 720 Ω |
| Rated operating power | 200 mW |
| Max. allowable voltage | 130% V of rated coil voltage (at 70℃) 180% V of rated coil voltage (at 20℃) |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form A |
| Contact shape | Twin |
| Contact resistance (initial) | Max. 50 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | Au-clad AgNi type |
| Contact rating (resistive load) | 5 A 250 V AC, 5 A 30 V DC |
| Max. switching power (resistive load) | 1,250 VA, 150 W |
| Max. switching voltage | 250 V AC, 110 V DC (0.3 A) |
| Max. switching current | 5 A (AC, DC) |
| Min. switching load (reference value) | 100 μA 100 mV DC |
| Insulation resistance (initial) | Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 1,000 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 4,000 Vrms for 1 min (detection current: 10 mA) |
| Surge withstand voltage (initial) : Between contact and coil | 8,000 V |
| Operate time (initial) (at 20℃) | Max. 20 ms at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 10 ms at rated coil voltage (without bounce, without diode) |
| Shock resistance (Functional) | 294 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) | 980 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional) | 10 to 55 Hz (at double amplitude of 2 mm, detection time: 10 μs) |
| Vibration resistance (Destructive) | 10 to 55 Hz (at double amplitude of 3.5 mm) |
| Mechanical life | Min. 20x106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -40 to +70℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 7 g |
Expected electrical life
| Item | Specifications |
|---|---|
| Resistive load | [switching frequency: 20 times/min] Min. 200x103 ope. 5 A 125 V AC Min. 100x103 ope. 5 A 250 V AC Min. 100x103 ope. 5 A 30 V DC |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL | Approval | File No. | E43028 | |
| Rating | 5A 277V AC 1/6 HP 277V AC 5A 30V DC 0.3A 110V DC | |||
| Remarks | - | |||
| Last update | ||||
| CSA | Approval | File No. | LR26550 | |
| Rating | 5A 277V AC 1/6 HP 277V AC 5A 30V DC 0.3A 110V DC | |||
| Remarks | - | |||
| Last update | ||||
| VDE | Approval | File No. | 40013088 | |
| Rating | 5A 250V AC(cosφ=0.4) 5A 30V DC(0ms) | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
