AJTV263｜JT-V Relays(Discontinued)
Download
Discontinued
Last time buy (JST)

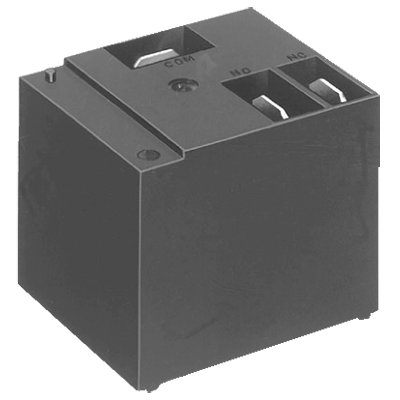

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | JTV1S-TMP-48V |
|---|---|
| Part Number | AJTV263 |
| Product Name | JT-V Relays(Discontinued) |
| Features | Surge withstand voltage: 6kV 1a/1c 30A power relays |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AJTV263 |
| Product Number | JTV1S-TMP-48V |
| Protective construction | Sealed |
| Operating function | Single side stable |
| Terminal shape | Tab terminal (TMP type) |
| Coil insulation class | Class F insulation |
| Standard packing Carton (pieces) | 50 |
| Standard packing Case (pieces) | 300 |
Coil data
| Item | Specifications |
|---|---|
| Rated coil voltage | 48 V DC |
| Operate voltage (at20℃) | Max. 75% V of rated coil voltage (Initial) |
| Release voltage (at20℃) | Min. 10% V of rated coil voltage (Initial) |
| Rated operating current [±10%] (at 20℃) | 20.8 mA |
| Coil resistance [±10%] (at 20℃) | 2,304 Ω |
| Rated operating power | 1,000 mW |
| Max. allowable voltage | 120% V of rated coil voltage (at 85℃) |
Specifications
| Item | Specifications |
|---|---|
| Contact arrangement | 1 Form C |
| Contact shape | Single |
| Contact resistance (initial) | Max. 50 mΩ (by voltage drop 6 V DC 1 A) |
| Contact material | AgSnO2 type |
| Contact rating (resistive load) | N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC |
| Max. switching power (resistive load) | N.C.: 2,770 VA, N.O.: 5,540 VA |
| Max. switching voltage | 277 V AC |
| Max. switching current | N.C.: 10 A, N.O.: 20 A |
| Min. switching load (reference value) | 100 mA 5 V DC |
| Insulation resistance (initial) | Min. 100 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.) |
| Dielectric strength (initial) : Between open contacts | 1,200 Vrms for 1 min (detection current: 10 mA) |
| Dielectric strength (initial) : Between contact and coil | 3,500 Vrms for 1 min (detection current: 10 mA) |
| Surge withstand voltage (initial) : Between contact and coil | 6,000 V |
| Operate time (initial) (at 20℃) | Max. 15 ms at rated coil voltage (without bounce) |
| Release time (initial) (at 20℃) | Max. 10 ms at rated coil voltage (without bounce, without diode) |
| Shock resistance (Functional) | 98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 μs) |
| Shock resistance (Destructive) | 980 m/s2 (half-sine shock pulse: 6 ms) |
| Vibration resistance (Functional) | 10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs) |
| Vibration resistance (Destructive) | 10 to 55 Hz (at double amplitude of 2 mm) |
| Mechanical life | Min. 10x106 ope. (switching frequency: at 180 times/min) |
| Conditions | Ambient temperature: -55 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Unit weight | Approx. 30 g |
Expected electrical life
| Item | Specifications |
|---|---|
| Resistive load | [at 20℃, switching frequency: 20 times/min] N.O.: Min. 100x103 ope. 20 A 277 V AC N.C.: Min. 100x103 ope. 10 A 277 V AC |
Information on Compliance with Standards
| Status | Status | Information on Compliance | ||
|---|---|---|---|---|
| UL/C-UL | Approval | File No. | E43028 | |
| Rating | 10A 277V AC(NC) 20A 277V AC(NO) | |||
| Remarks | - | |||
| Last update | ||||
| CSA | N/A | File No. | - | |
| Rating | - | |||
| Remarks | - | |||
| Last update | ||||
| Mark on products* | ||||
* The "Mark on products" field shows the standards' certificate type marked to products. Note that not all certified products have a certificate mark affixed to them.
