AP929006｜HC Relay with Diode Type(Discontinued)
Download
Discontinued
Last time buy (JST)

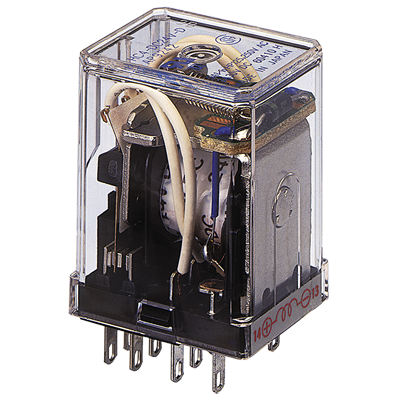

*Photo may vary from actual product.
This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.
| Product Number | HC4D-L-DC6V-D |
|---|---|
| Part Number | AP929006 |
| Details | Plug-in terminal |
| Product Name | HC Relay with Diode Type(Discontinued) |
| Features | Has built-in diode to absorb surge |
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | AP929006 |
| Product Number | HC4D-L-DC6V-D |
| Product details | Plug-in terminal |
| Accessories | Sockets and terminal sockets are available. |
| Protective construction | Dust Cover Type |
| Terminal arrangment | Plug-in terminal |
| Contact arrangement | 4 Form C Bifurcated (twin) |
| Coil voltage | 6V DC |
| Nominal Operating Power | 900mW |
| Pick-up voltage | 4.8V DC |
| Drop-out voltage | 0.6V DC |
| Nominal switching capacity (Resistive load) | 3A,250V AC |
| Min. switching capacity | 100microA 1V DC |
| Type of operation | BBM |
| Contact material | Stationary contact:AgNi + Au clad Movable contact:AgNi + Au clad |
| Expected life (Mechanical) (Min.operation) | 1x10^8 |
| Expected life (Electrical) | 2x10^5 |
| Breakdown voltage (Contact-Contact)(Initial) | 700Vrms |
| Breakdown voltage (Contact-Coil)(Initial) | 2000Vrms |
| Ambient temperature | -50deg to +60deg |
| Operating function | Single Side Stable Type |
| Operation indication | With LED indication |
| Type classification | With diode |
