ARE1012｜RE Relays(Discontinued)

Download

Discontinued

Last time buy (JST)

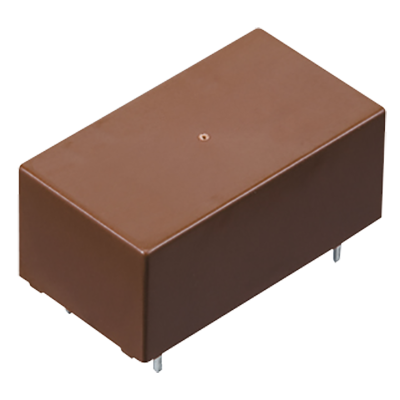

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    ARE1012

    Part Number

    ARE1012

    Product Name

    		 RE Relays(Discontinued)

    Features

    2.6 GHz capable, 10 W carrying power (at 2.6 GHz), 50Ω/75Ω impedance and 1 Form C relays
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberARE1012
    Product NumberARE1012
    Protective constructionSealed Type
    Operating functionSingle Side Stable Type
    Terminal shapeStandard PC board terminal
    Packing styleCarton
    Frequency2.6GHz
    V.S.W.RMax. 1.3 (to 900MHz), Max. 1.7 (to 2.6GHz)
    Insertion lossMax. 0.2dB (to 900MHz), Max. 0.7dB (to 2.6GHz)
    IsolationMin. 60dB (to 900MHz), Min. 30dB (to 2.6GHz)
    Impedance50Ω
    Rated coil voltage12V DC
    Operate voltage (at 20 ℃)Max. 75 % V of rated coil voltage (Initial)
    Release voltage (at 20 ℃)Min. 10 % V of rated coil voltage (Initial)
    Rated operating power200mW
    Contact arrangement1 Form C
    Contact materialAu plating
    Contact ratingHigh frequency load: 1W (at 2.6 GHz, 50Ω, V.S.W.R. Max. 1.7
    Resistive load: 10mA 24V DC
    Contact input power (CW)10W (at 2.6GHz, Impedance 50Ω, V.S.W.R. Max.1.7)
    Dielectric strength Between open contacts (initial)500 V rms for 1 min (detection current: 10 mA)
    Dielectric strength Between contact and coil (initial)1,000 V rms for 1 min (detection current: 10 mA)
    Expected mechanical life (cold switch)Min. 106 ope. (switching frequency: at 180 times/min)
    ConditionsAmbient temperature: －40 to ＋70 ℃ (Allowable temperature is from －40 to ＋70 ℃ at our standard packing condition)
    Humidity: 5 to 85% RH (Avoid icing and condensation)
    Expected electrical life (hot switch)Conditions: Switching frequency at 20 times/min
    300x103ope. High frequency load 1W (2.6GHz, Impedance 50Ω, V.S.W.R. Max. 1.7)
    300x103ope. Resistive load 10mA 24V DC
