AXE130124｜A4US(0.4mm pitch)(Discontinued)

Download

Discontinued

Last time buy (JST)

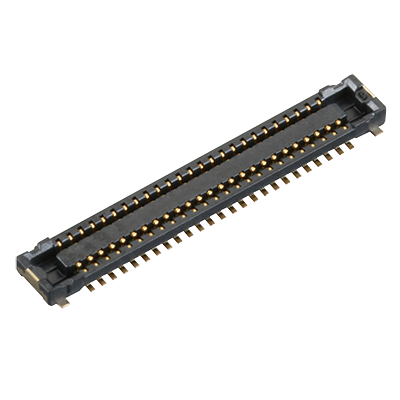

*Photo may vary from actual product.

This product has been confirmed that it does not contain the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU.

    Product Number

    AXE130124

    Part Number

    AXE130124

    Details

    Socket

    Product Name

    		 A4US(0.4mm pitch)(Discontinued)

    Features

    Slim!! Contributes to miniaturization and advanced functionality with 2.0/2.2 mm width
    Substitute
    Sub Prod No.
    Sub Part No.
    Remark

    Spec Detail

    ItemSpecifications
    Part NumberAXE130124
    Product NumberAXE130124
    Product detailsSocket
    Connector TypeBOARD-TO-FPC
    Socket/HeaderSocket
    ApplicationsSuitable for board-to-FPC connections in mobile equipment that requires size and thickness reduction and functionality enhancement.
    Terminal pitch (mm)0.4
    Number of pins30
    Mated height (mm)0.8mm
    Packing styleEMBOSSED TAPE AND PLASTIC REEL
    Soldering terminalswith
    Positioning bosseswithout
    Body length (L mm)8.50
    Body Height (H mm)0.77
    Short width (mm)2.20
    Recommended PC board pattern Width (mm)2.40
    Rated current0.30A/pin contact (Max. 5A at total pin contacts)
    Dielectric strength150V AC for 1min.
    Insulation resistance (Min.MΩ) (Initial)1000
    Contact resistance (Max.mΩ)90
    Insertion and removal life (times)30
    Molded portion materialLCP resin (UL94V-0)
    Contact and Post MaterialCopper alloy
    Surface treatment materialBase: Ni plating Surface: Au plating
